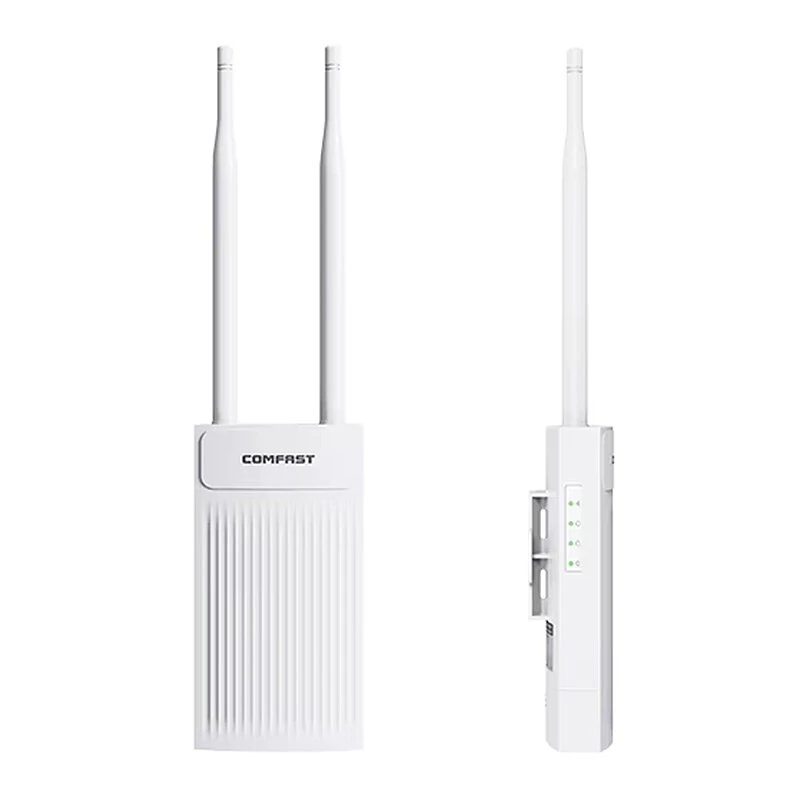

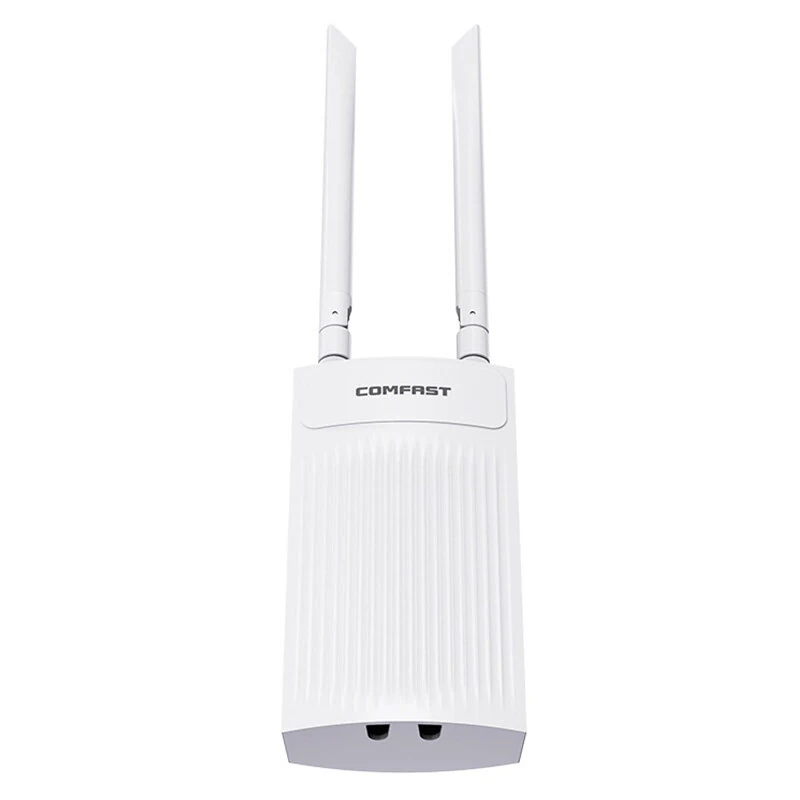

COMFAST CF-EW65 3000M Outdoor WiFi 6 Access Point Dual Band IP66

Specifications

• Brand: COMFAST
• Model: CF-EW65
• CPU: Qualcomm QCA9531 industrial, 650 MHz; RAM 64 MB; flash 16 MB
• PA chip: 2 x E2576L
• Antennas: 2 x 5 dBi external
• Wireless rate: 2.4 GHz, 300 Mbps

RF

• Max transmit power: 500 mW (27 dBm)
• Min receive sensitivity: -96 dBm
• Frequency: IEEE 802.11 b/g/n, 2.412–2.484 GHz

Ports

• WAN: 1 x 10/100 Mbps RJ45, PoE supported
• LAN: 1 x 10/100 Mbps RJ45, PoE supported
• Button: 1 x reset
• Power: PoE (48V / 0.32A)
• Power consumption: 11W
• Protection: IP66
• MTBF: >250,000 h
• Mounting: wall / pole
• Dimensions: 353 x 85 x 44 mm

Environment

• Operating temperature: -10 to 55°C
• Storage temperature: -40 to 70°C
• Operating humidity: 10%–90% RH, non-condensing
• Storage humidity: 5%–95% RH, non-condensing

Features

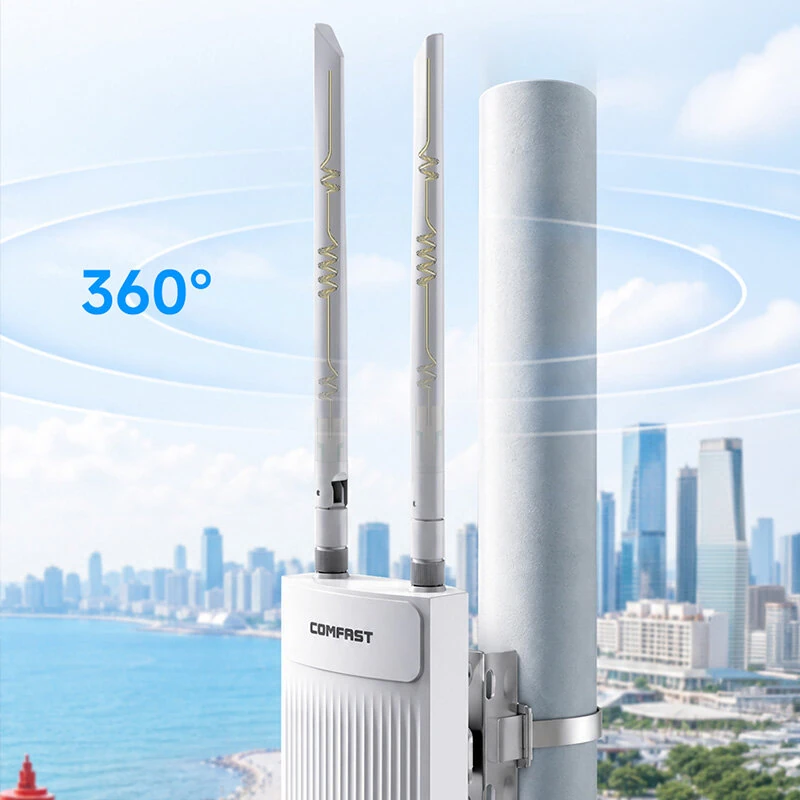

• 1. Long-range 360° coverage: two high-power 5 dBi omnidirectional antennas reduce dead zones in large outdoor areas.
• 2. High capacity: up to 64 clients at once, for parks, squares and outdoor events.
• 3. All-weather IP66 housing against dust and water.
• 4. Simple PoE installation: 48V Power over Ethernet carries power and data on one cable.

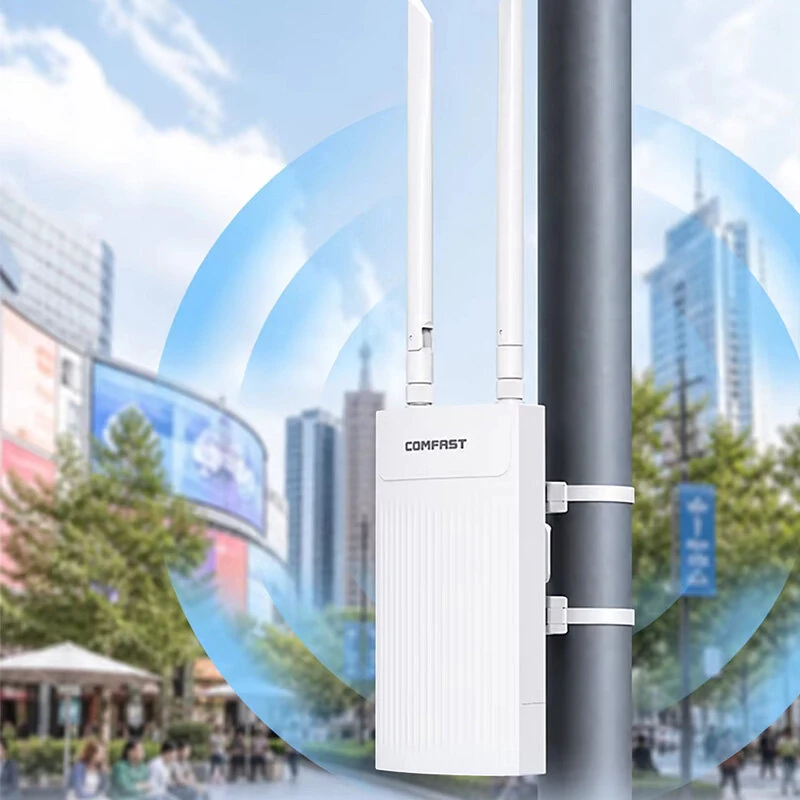

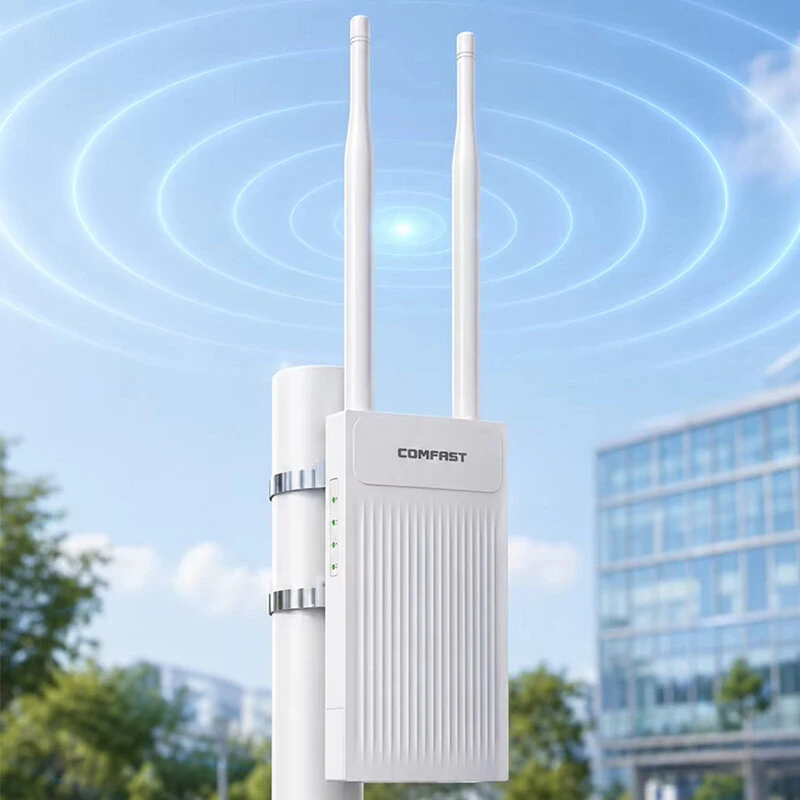

• 5. Wall or pole mounting.

In the box

• 1 x CF-EW65 outdoor access point
• 1 x PoE power supply
• 1 x Network cable
