Bakeey WLX-F4 PD100W 8-Port GaN USB PD Charger with Digital Display and Wireless Charger
Free shipping · Delivered in 5–10 business days · 14-day returns
- Model
- WLX-F4
- Size
- 102x101x94 mm
- Interface
- 4× USB-A + 4× USB-C + wireless charger
- Output
- USB-C1/C2/C3/C4 : 5V=3A/9V=3A/12V=3A/15V=3A/20V=5A
- Code
- BG-2056911
Specifications
- Product: smart multi-port desktop charging station with digital display
- Model: WLX-F4
- Size: 102 x 101 x 94 mm
- Ports: 4 x USB-A + 4 x USB-C + wireless charger
- Input: AC 100–240V, 50–60 Hz

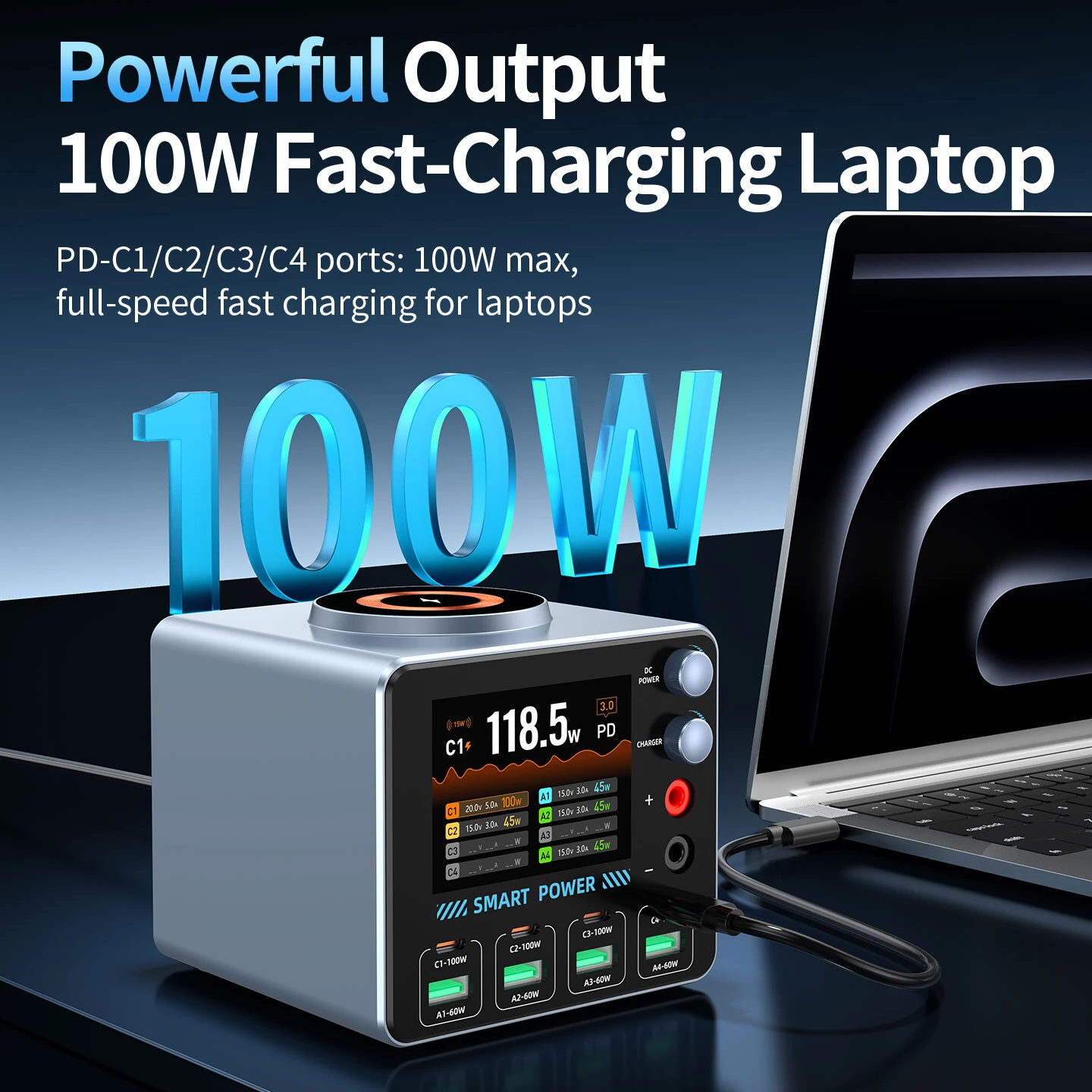

- Output USB-C1/C2/C3/C4: 5V 3A / 9V 3A / 12V 3A / 15V 3A / 20V 5A
- Output USB-A1/A2/A3/A4: 5V 3A / 9V 3A / 12V 3A / 15V 3A / 20V 3A
- Pairs C1+A1 / C2+A2 / C3+A3 / C4+A4: 5V 1.5A + 5V 1.5A
- Magnetic wireless charger: 5–15W
- DC max: 2.7–24V (0–5.1A)
- DC power + charger: 2.7–5V (0–3.1A) + charger
- Protocols: PD, QC3.0
- Plug: EU
- Power: 100W
Features

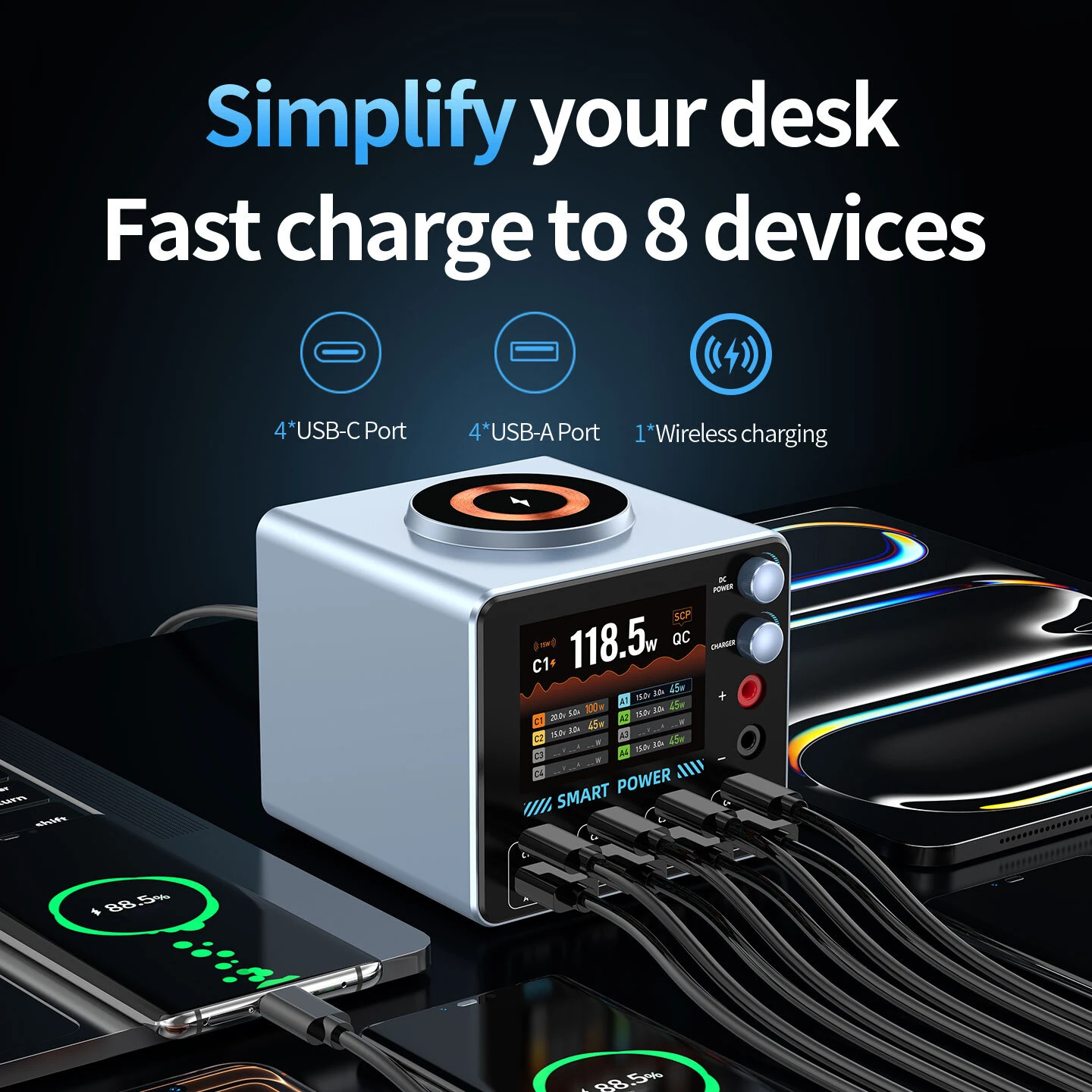

- 1. 9-in-1 charging hub: 4 USB-C + 4 USB-A + a 15W magnetic wireless pad for phones, tablets, laptops, watches and earbuds.

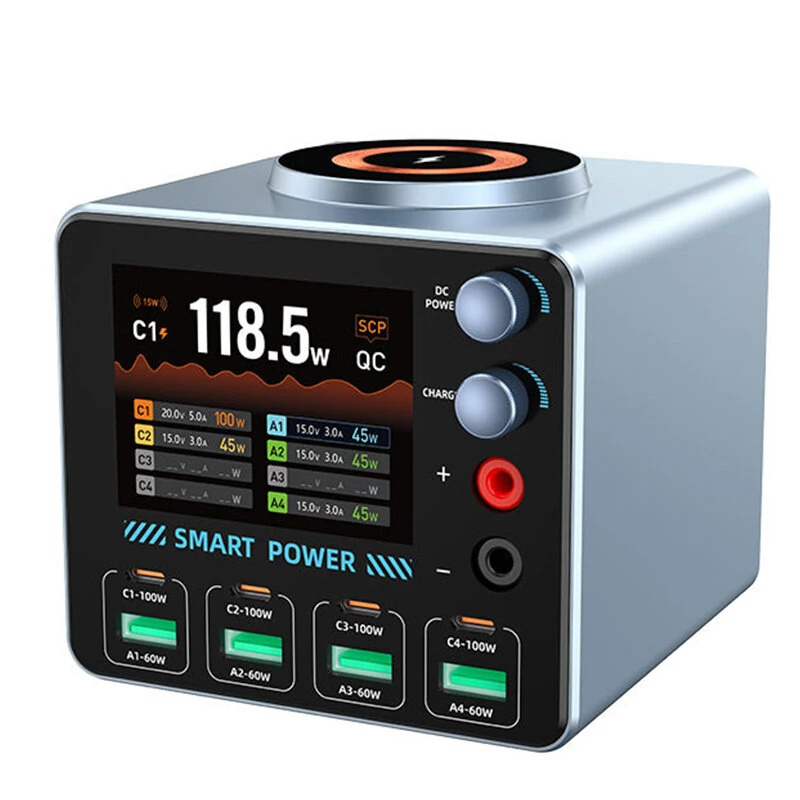

- 2. 2.8-inch HD IPS screen: real-time voltage, current, power, capacity and time, with voltage/current curves and total power.

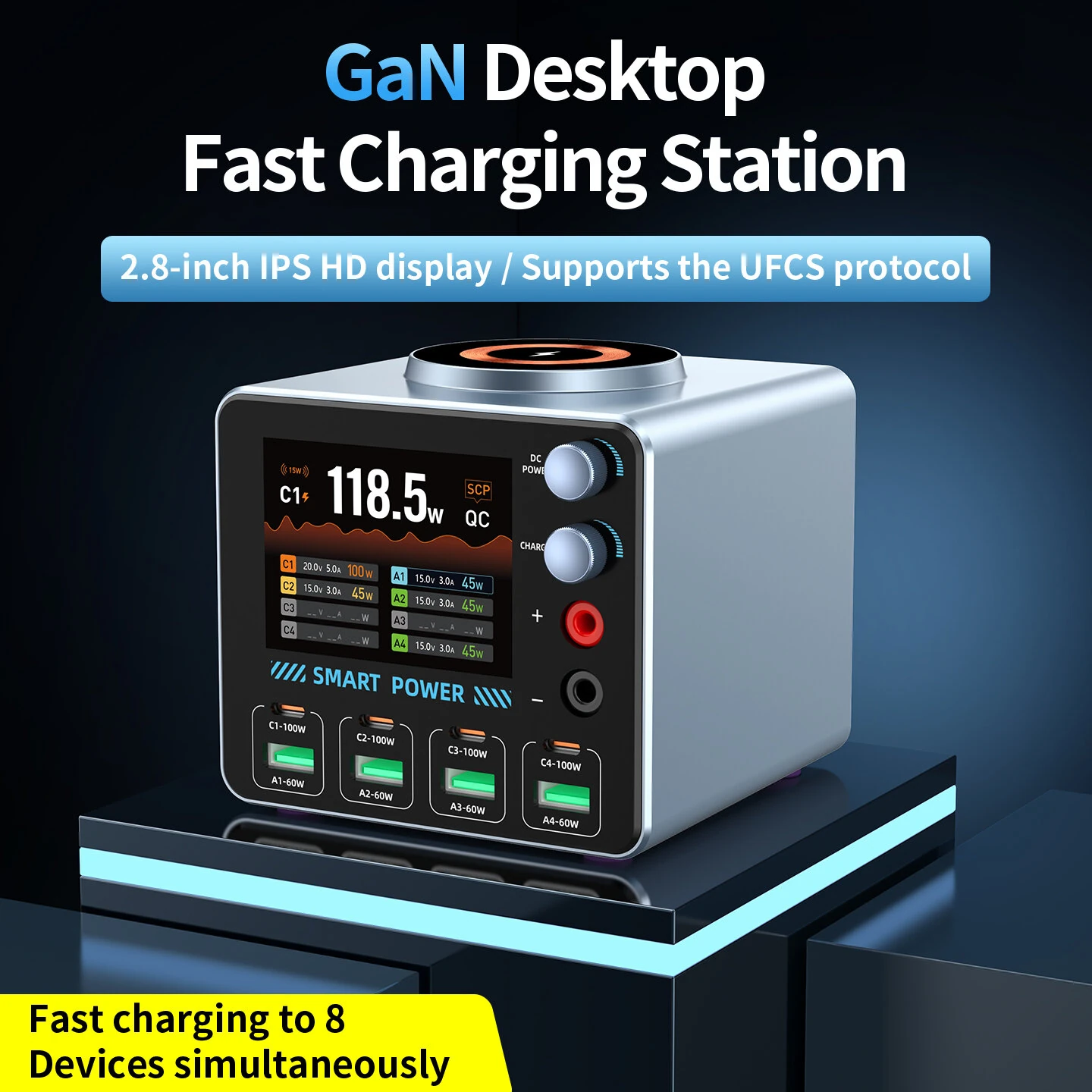

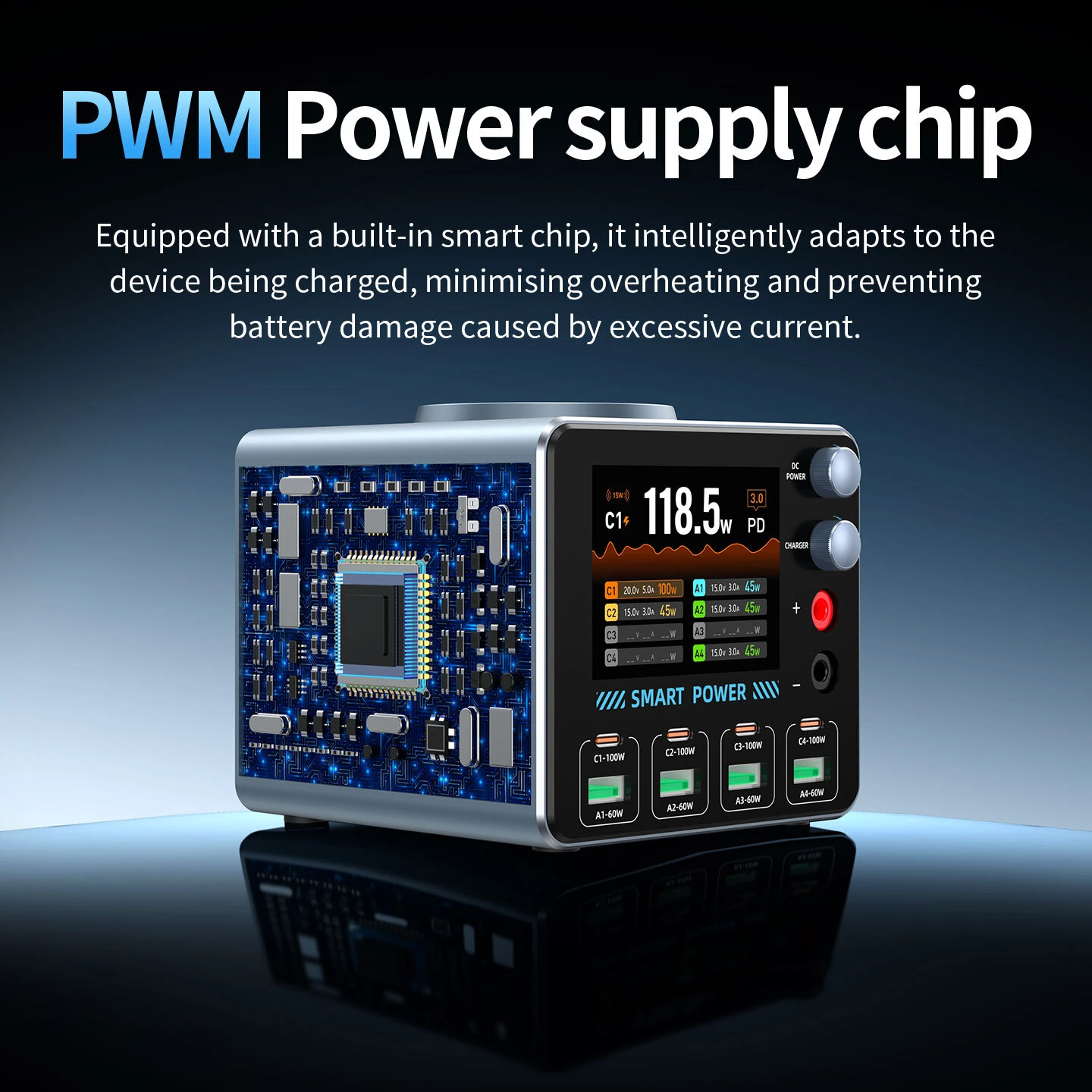

- 3. GaN chip + smart PWM power chip: faster charging with better temperature control and protection.

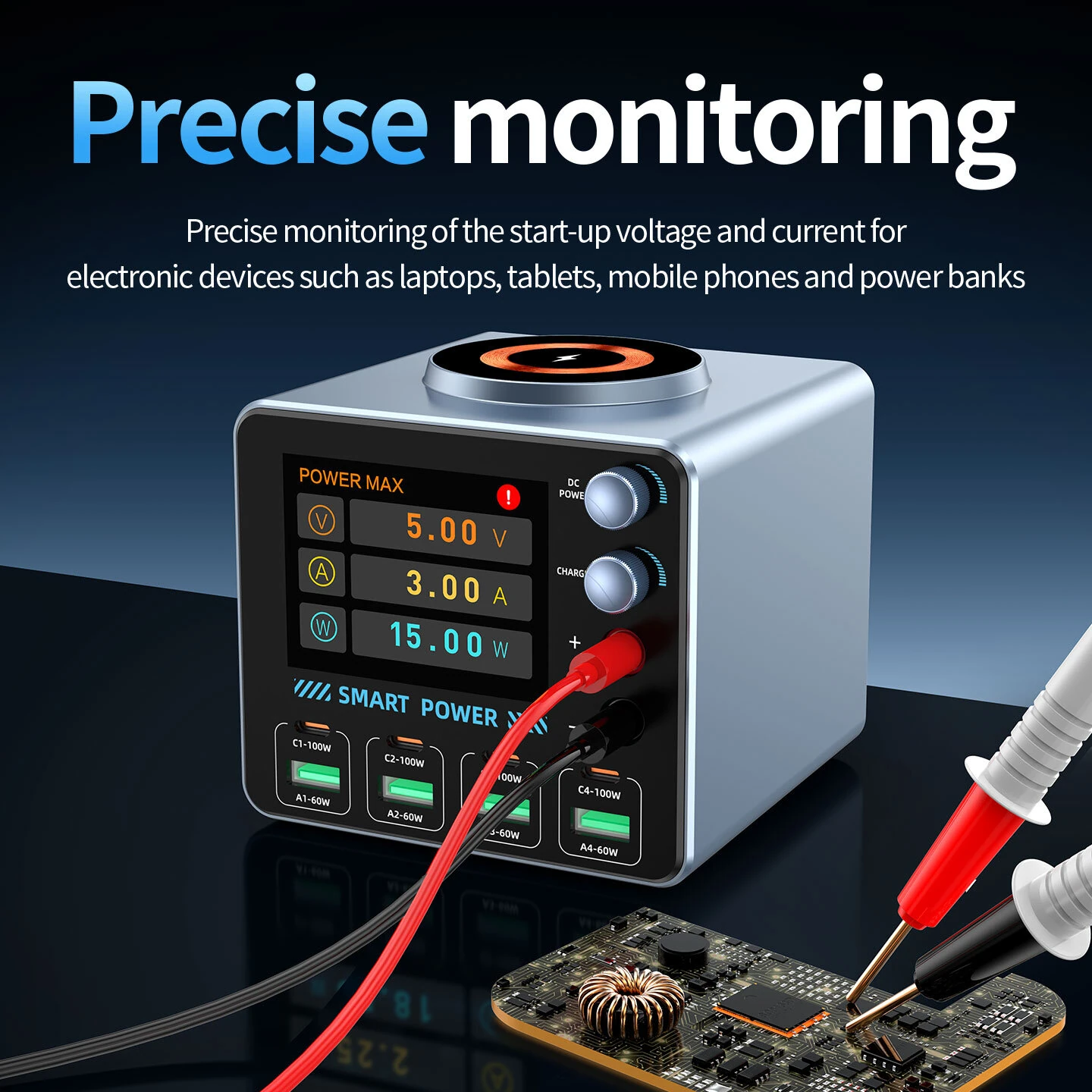

- 4. Adjustable DC supply for repair and testing: 2.7–24V / 0–5.1A via knob, 0.001 V/A precision, with short-circuit detection for PCB maintenance.
- 5. Real-time curve recording with one press, plus a fun standby animation.
- 6. 8-layer protection: overcurrent, overvoltage, short circuit, overheating, overpower, leakage, overload and voltage regulation.
In the box
- 1 x Desktop charging station
